Audio-Technica AT-LP7 Turntable

"It provides a taste of the high end and a firm foundation from which to reach considerably higher than its price tag indicates."

by Vance Hiner | February 8, 2019

love music, and I really dig hearing it on vinyl. That said, I’ll admit that my relationship with analog playback is pretty transactional -- I just want to hear the music -- especially when compared to the tea ceremonies some audiophiles engage in when they play records. I credit my parents for this. As poor college students in the early 1960s, they scraped together just enough money from their meager budget to buy a turquoise-blue and white portable "hi-fi" record player from Columbia House with detachable stereo speakers. I was particularly impressed that you could put three records on its spindle and they’d play in succession. We used that record player constantly, but no one in our family ever thought or talked about the device itself. The spinning turntable was an appliance we took for granted because it always did what it was supposed to do. It never needed service or attention and was still working 15 years later, when we replaced it with a Sears-brand record player that included an FM tuner, 8-track/cassette bay and a headphone jack.

Price: $799.
Warranty: One year parts and labor.

Audio-Technica
1221 Commerce Drive
Stow, Ohio 44224
(330) 686-2600
www.audio-technica.com

Even though my current audio system costs as much as a luxury sports car, my purchasing decisions have been (with a few lapses in judgment along the way) driven by a three-part prime directive. First, a piece of equipment must be made so well that it can withstand constant use and even a little abuse. Second, it must be capable of reliably presenting wildly diverse forms of music in a musically rewarding manner. And, third, it shouldn’t be particularly difficult to operate and maintain.

It should come as no surprise, then, that I’ve been quite happy using a 20-year-old Rega P3 turntable with a Denon DL-103R moving-coil cartridge ever since returning to the vinyl fold a couple of years ago. This humble rig ticks all of my fundamental boxes, and it’s hard to beat in the performance-for-price category. However, when I was offered Audio-Technica’s AT-LP7 turntable for review, I was eager to find out how an analog source costing just shy of 800 modern dollars might sound and how it would stack up against my old-school setup.

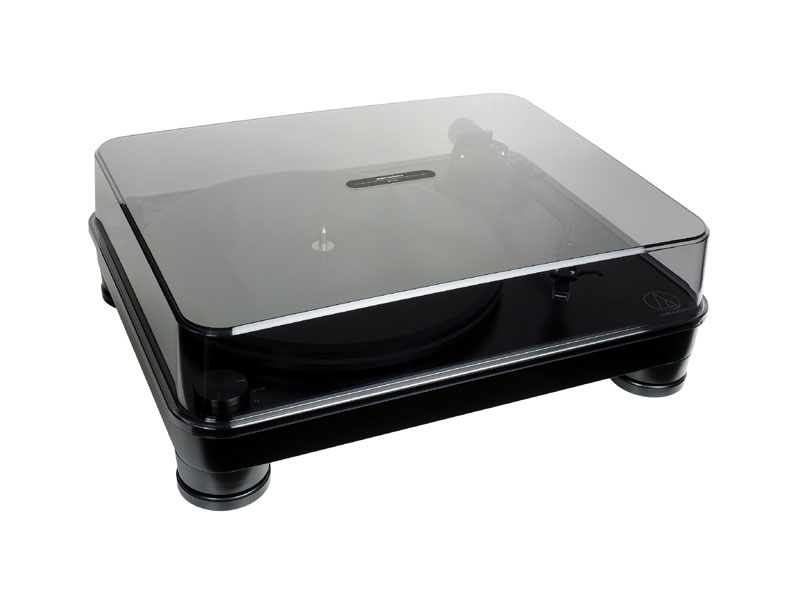

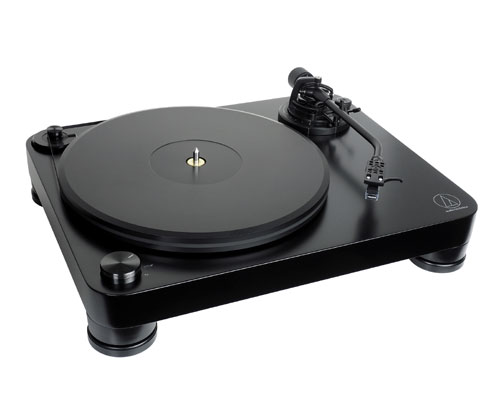

Weighing in at 18.5 pounds sans its smokey-gray, plastic, non-hinged dust cover, the belt-driven 'LP7 feels substantial coming out of the box and even more solid once it’s assembled and placed on an equipment rack. The anti-resonance platter is made of 20mm-thick polyoxymethylene, a rigid thermoplastic that Audio-Technica claims will provide outstanding dimensional stability. Beneath the platter is a 40mm-thick MDF chassis designed to reduce vibration. Audio-Technica says the DC-powered motor it houses is equipped with a speed sensor to maintain continuously accurate platter rotation.

The chassis rests on four easily adjustable isolation footers. While I was unable to determine the inner design of the footers, I did notice that each one is comprised of two sections that appear to sandwich bearings and/or cushioning material. If you push the chassis down lightly with a finger, the footer’s two sections compress together and then separate again when the pressure is taken away. I tested the ‘table’s ability to reject external vibrations by tapping vigorously on my equipment rack's shelf while playing a record, and I was surprised that the action had no audible effect. When I apply this test to my old Rega P3, a thumping sound is immediately passed along to the speakers.

It’s worth noting that the bottoms of the footers form a considerable suction seal to whatever surface the turntable is placed on, so use caution when shifting the ‘table after it has been in place for a while. Before any repositioning, it would be wise to make sure the tonearm is locked and then rock the table gently from side to side to allow one of the footers to break its seal -- the rest will then release.

The 'LP7 comes with Audio-Technica’s VM520EB moving-magnet cartridge pre-mounted on a removable AT-HS10 headshell. This cartridge employs the company’s proprietary Dual Magnet design in which the magnets are meticulously positioned to more accurately convey information from both the left and right sides of a stereo record’s groove walls. Audio-Technica claims this design results in superior channel separation, stereo imaging, tracking and frequency response. The VM520EB features the company’s mid-priced 0.3 x 0.7 mil bonded elliptical stylus, which even a clumsy, multi-thumbed user like me can easily replace with any of the more expensive styli in the Audio-Technica VM line without having to pony up for the replacement cost of an entire cartridge. The 'LP7 comes equipped with an internal moving-magnet/moving-coil phono stage as well as a line-only switch for those who already own a phono stage or want to upgrade down the road.

The 'LP7’s J-shaped tonearm is a nod to Audio-Technica’s classic 1960s and 1970s ‘arms. It employs a metallic gimbal suspension system and precision bearings to minimize tracking errors. The fit'n'finish of the tonearm and base assembly are both visually and tactilely appealing. The measurement indicators are embossed in vivid white on a smooth, black-as-ink matte finish, and each dial used for making adjustments in height/VTA, tracking force and anti-skating is textured around the edges. The 'LP7’s design reminds me of the approach taken by Apple or Tesla: the machine works so elegantly that you’ll find yourself looking forward to interacting with it. Even the 'LP7’s textured speed-control knob and soft-blue power-indicator LED are pleasing conveniences not found on some far more expensive ‘tables.

Take two

In recent years, a gulf has existed between Audio-Technica's phono cartridges and turntables. Many of the cartridges, both MM and MC, have offered top-shelf performance for reasonable prices, but the turntables, even the best of them, have resided at the lower end of the spectrum, more functional than possessing audiophile aspirations.

All of that ended with the AT-LP7, which Audio-Technica proclaimed its finest turntable ever. When I first saw it in the company's suite during CES 2018, I had to do a double-take. It was substantial, at least visibly, in ways that other Audio-Technica turntables were not, and there were some true audiophile features. While no one would confuse the 'LP7 with a top-line 'table from the likes of Kuzma or Grand Prix Audio, it certainly didn't look like any previous Audio-Technica turntable I had seen. It hearkened back decades, when Audio-Technica was a premier name in audio, not just the analog side of it, and it seemed to present a tantalizing opportunity for upgrading, including to one of Audio-Technica's higher-end cartridges.

But let's not get ahead of ourselves. Out of the box, the AT-LP7 is an impressive package for its price, which could be even lower than $799, given the discounts that Audio-Technica products normally command. It's obvious that the people who designed it accept the maxim that analog playback is about reducing bad vibration in order to maximize the good vibration down in the groove. The 'table includes most of the important audiophile features: belt drive via an isolated motor, a substantial plinth and platter, a tonearm with VTA adjustment, and feet that isolate everything. I really like the cover, which allows you to keep dust out while also being devoid of clumsy hinges and thus completely removable.

One quirk of the design is the motor, which cannot be adjusted. This system, which some of Harman Kardon's turntables from the 1980s also used, relies on the precise size of the belt to maintain accurate speed. When the belt stretches over time, the speed will be slow; if you replace it with an after-market belt that's too small, the speed will be too fast. Audio-Technica recommends changing the belt, which you must buy from them, once a year. This seems excessive until you realize how critical the belt is to the AT-LP7's speed.

I use an Audio-Technica AT-440MLa cartridge on the turntable in my office, and (sadly) there are long stretches during which I play LPs with it far more frequently than I do on my reference 'table. So I recognized the lively, detailed sound of the VM520EB cartridge that comes with the 'LP7. With my Audio-Technica cartridge mounted, I often preferred the lighter, more poised presentation of the 'LP7 to that of my Technics SP-15 drive with Audio-Technica AT-12P tonearm, although the latter will play 78s. The AT-LP7 is more compact -- the Technics plinth that I have is big and bulky -- and much better isolated from the effect of nearby footfalls.

The 'LP7's onboard phono stage is a convenience, not a long-term solution -- the Creek and Music Hall units I normally use sound more present and authoritative. The 'table itself is a well-designed platform for analog playback that will reward tweaking. Along with the obvious upgrades would be a headshell that allows azimuth adjustment.

This turntable performs as confidently as it looks, and you may discover, as I did, that it can earn its keep in systems where cost is less of a concern than its budget price might suggest. The Audio-Technica AT-LP7 is worth considering along with models from VPI, Clearaudio, Rega and Pro-Ject, which puts it in very good company.

-Marc Mickelson

y time with the 'LP7 started smoothly. Everything arrived in a well-arranged cardboard-and-foam container with an easy-to-read instruction manual that helped me and my TAB colleague, Mark Blackmore, unpack and set up the ‘table in just about a half-hour. Vinyl newbies might want to consult a YouTube tutorial about cartridge setup, but carefully following the written instructions will be sufficient for those who aren’t ergonomically challenged. My only quibble is that Audio-Technica did not include an alignment jig, a leveling tool or tracking-force gauge to verify proper setup. I also wish all manufacturers would include some kind of device to aid in positioning the tonearm parallel with the platter. Getting a good line-of-sight estimation is not always as easy as it looks if your rack is low to the ground.

Nonetheless, a quick verification with a DB Systems protractor after the cartridge’s headshell was mounted indicated that the folks at Audio-Technica did a fine job with their design and further cartridge-alignment adjustments weren’t needed. We used a four-dollar plastic bullseye bubble level from the local hardware store to determine that the 'LP7 was sitting slightly tilted on my Solidsteel equipment rack. A couple of turns of the ‘table’s adjustable feet were all that was needed to get the bubble dead center. Because the 'LP7 may be used by a vinyl newbie, we tried setting the tracking force according to the manual. After dialing the counterweight out to achieve a free-floating balance, we used the 'LP7’s tracking-force ring to set the final vertical tracking force. Again, to Audio-Technica’s credit, the force was spot on when checked with an Ortofon digital gauge. This method proved accurate each time we performed the measurement after a change. Although a stylus-force gauge should always be used to set VTF, it was nice to see that this is one 'table that could be set up without an added accessory.

While the 'LP7 sounded clear and competent right out of the gate, the cartridge and cabling needed some playing time for instrumental timbres to sound relaxed and completely natural. That would be true of every brand-new analog front-end I’ve heard. After two weeks with the 'table in heavy rotation, I settled in for some critical listening using the 'LP7’s onboard phono stage fed to the line input of my Convergent Audio Technology Black Path Edition Renaissance SL1 preamp. The first selection was Harry Nilsson’s A Little Touch of Schmilsson in the Night [RCA APL1-0097], a vintage disc that’s packed with exciting crescendos, subtle detail and a diversity of musical instruments. Nilsson’s multi-octave range is also a good way to test a ‘table’s ability to reproduce the full spectrum of a human voice in a believable manner. The stock 'LP7 did a superb job of accurately tracking throughout the disc, conveying the purity of Nilsson’s sustained pitch as well as the lushness of his accompanying orchestra. The Audio-Technica VM520EB cartridge retrieved far more detail than I expected from a budget moving-magnet design. The texture of violins and subtle breaths Nilsson takes before beginning a new line were there to be heard, but they did not become intrusive.

The 'LP7’s superb tracking and lively, distortion-free retrieval of detail were consistent regardless of the record, even some discs whose innermost tracks proved to be a challenge for my 20-year-old Rega P3. However, dynamics sounded constricted and the soundstage was smaller than I was accustomed to hearing when using my reference. When I switched off the 'LP7’s phono stage and connected directly to the far more expensive tube phono stage of my preamp, the 'LP7’s presentation blossomed and bloomed; instruments and the surrounding space became more three-dimensional, and dynamics reached a much grander scale. Anyone who purchases the 'LP7 should note that this humble ‘table clearly has a reserve of impressive performance potential that can be unlocked with the upgrade to a separate phono stage down the road. The same is true of Audio-Technica’s stock RCA cables and grounding wire. By replacing them with Shunyata Research’s flagship Sigma phono and grounding cables, I found that the 'LP7 delivered far more micro detail than I thought possible in this price range. While I don’t suggest breaking the bank on interconnects, it’s clear that the 'LP7 has plenty of potential for those willing to tweak.

While the stock 'LP7’s retrieval of detail was impressive, its presentation of some instruments began to sound a bit relentless over time. For example, on Count Basie’s Basie and Friends [Pablo 2310-925], the striking of Basie’s piano keys pinged in a manner I’d never heard before. Brighter recordings like the Rhino remaster of the Ramone’s Rocket to Russia [Rhino RR1 6042] highlighted Tommy Ramone’s cymbals and leading edge of his stick attack to the detriment of instruments that live in the album’s propulsive midrange. That emphasis made the recording sound more fatiguing than I remembered.

So I decided to swap out the Audio-Technica VM520EB cartridge for my trusty Denon '103R (with no loading, which is what I prefer in my system). That was all it took to put Tommy’s cymbals back into proper proportion and bring Johnny and Dee Dee rumbling back into the mix. All was well again. As good as the VM520EB was, the '103R’s presentation of the frequency range was more balanced, and the tonal palette was more true to what I think drums, cymbals and guitars sound like. To my ears, and through my system, the VM520EB sounded a bit tipped up. However, the upper-frequency emphasis was less distracting when using the 'LP7’s onboard phono stage and supplied RCA cables.

Once the 'LP7 was equipped with a cartridge more familiar to me, I began to identify clearly the characteristics of the ‘table and tonearm. First and foremost, the 'LP7 was impressively quiet. On high-quality pressings, like the Speakers Corner reissue of Wear Your Love Like Heaven [Epic/Speakers Corner BN26349], I heard Donovan Leech’s voice emerge spookily from an inky-black background. One non-audiophile music lover who visited during my audition was impressed enough to say, "This is vinyl? It’s more clear and detailed than a CD!" Audio-Technica’s attention to noise reduction was well spent.

The 'LP7’s other outstanding trait is its tracking performance. Perhaps it was the J-shaped tonearm and gimbal suspension, but the 'LP7 eliminated minor distortion on the inner-most tracks of a number of records that I’d previously thought were poorly recorded. On the other hand, the 'LP7 also struck me as a bit analytical at times. On an album like Warren Zevon’s Excitable Boy [Asylum 6E-118], it lacked some of the midrange warmth my Rega brought to the proceedings. On the other hand, the 'LP7’s precision and clarity made listening to more subtle orchestral interludes on Randy Newman’s Sail Away [Warner Brothers MS 2064] truly exhilarating.

ith the AT-LP7, Audio-Technica has delivered a solid package that is more than capable of facing competition in the $800-$1200 neighborhood. This is a turntable package with which you can grow, beginning with it in stock form and then upgrading down the road. In this case, your smartly designed belt-drive turntable with adjustable tonearm will respond. During my time with the 'LP7, it proved itself capable of delivering enough of the truth to reward splurging for remastered LPs, as well as phono-stage, cable and cartridge upgrades -- exactly what you'd want from a modern belt-drive turntable.

Rock-solid build quality and impressive attention to detail make the 'LP7 a great turntable for a music lover, a budding audiophile, or a veteran hi-fi hobbyist on a budget. It provides a taste of the high end and a firm foundation from which to reach considerably higher than its price tag indicates.

Associated Equipment

Analog: Rega RP3 turntable, Moth RB300 tonearm, Denon DL-103R and Rega Elys phono cartridges, Shunyata Research Sigma phono cables and ground wire.

Digital: PS Audio DirectStream and Audio Research DAC9 digital-to-analog converters, PS Audio PerfectWave transport, Auralic Aries Streamer Bridge with Purer-Power linear power supply, Roon Labs data-management service and MacBook Pro running Core music-library software and Channel D Pure Music software, AudioQuest JitterBug USB filters.

Preamplifier: Convergent Audio Technology SL1 Renaissance (Black Path Edition).

Power amplifier: Conrad-Johnson Premier 350SA.

Loudspeakers: Wilson Audio Sasha W/P Series 2.

Interconnects: Shunyata Research Sigma.

Speaker cables: Shunyata Research Sigma.

Digital cables: AudioQuest Carbon USB, Shunyata Research Venom USB, Shunyata Research Sigma AES/EBU and S/PDIF.

Power conditioners: Shunyata Research Denali 6000/S, 6000/T and 2000/T; Shunyata Research Defender used in associated wall outlet.

Power cords: Shunyata Research Sigma NR.

Equipment rack and supports: Solidsteel S3 Series and S4 Series equipment racks, Shunyata Research Dark Field Suspension System, IKEA Aptitlig chopping blocks, Stillpoints Ultra SS speaker risers and Ultra 5 isolators.

Accessories: Acoustic Revive RD-3 disc demagnetizer, UltraBit Diamond-Plus Digital Systems Enhancer.
